Sanwa Indonesia - Sanwa Digital Multimeters

Sanwa PC700, PC7000, PC710, PC720M, PC20, PC773, CD770, CD771, CD772, PM33a, CD732, RD700, RD701, CD800a, CD800b, CD800F, PM11, PM3, PM300, PM7a, PS8a, DG34a, DG35a, DG36a, KP1

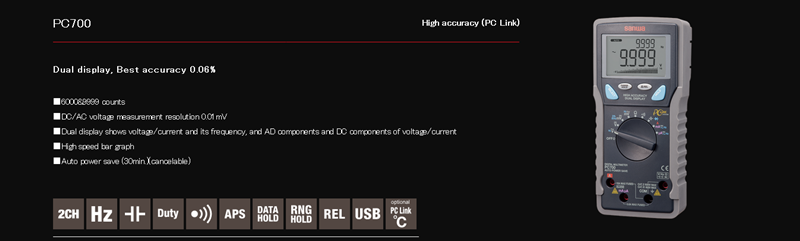

Digital Multimeters

Digital Multimeters/High accuracy/High resolution (PC Link)

Safety
IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V Max./CAT. II 1000V Max.EN61326-1:2006
Basic Features
■4 digits 9999 count & 3-5/6 digits 6000count
■Maximum DC/AC voltage measurement resolution 0.01mV
■Dual Display shows voltage/current and its frequency, and
   AC components and DC components of voltage/current
■High speed bar graph
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)

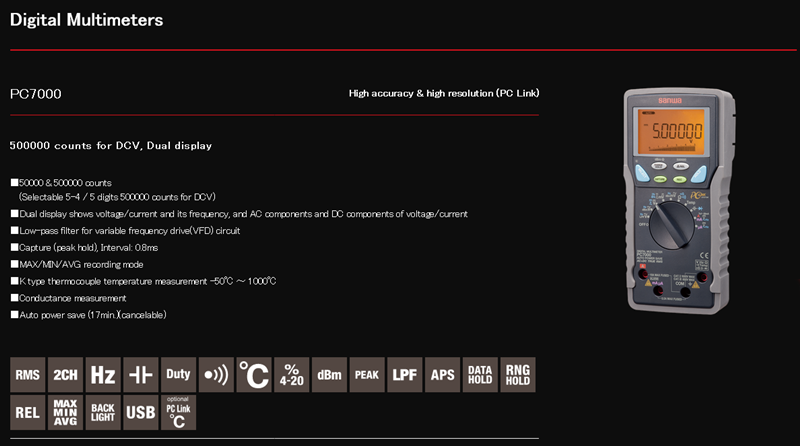

Digital Multimeters

Digital Multimeters/High accuracy/High resolution (PC Link)

Safety
IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V
Max./CAT. II 1000V Max., EN61326-1:2006
Basic Features
■4-4 / 5digits 50000 count
   (Selectable 5-4 / 5 digits 500000 count for DCV)
■Dual Display shows voltage/current and its frequency, and AC components and
   DC components of voltage/current
■AC True RMS
■Low-pass filter for variable frequency drive(VFD) circuit
■Current (mA / μA) %4-20mA measurement
■Capture (peak hold) 0.8ms in duration
■MAX, MIN, AVG recording mode
■K type temperature -50℃〜1000℃
  ※Optional accessory K-AD is necessary.
  ※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Conductance measurement
■Dual display with backlight
■Data hold, Range hold
■Relative value
■Auto power saving mode (17min.) (cancelable)
■Optical Link USB interface (optional)

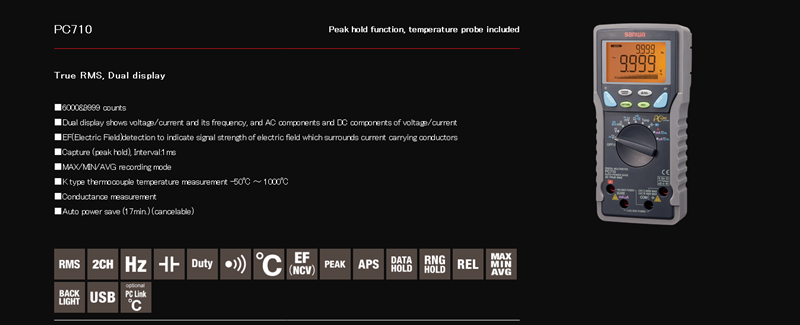

Digital Multimeters

Digital Multimeters/High accuracy/High resolution (PC Link)

Safety
IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V Max./CAT. II 1000V
Basic Features
■4 digits 9999 count & 3-5/6 digits 6000 count
■Dual Display shows voltage/current and its frequency, and AC components and
   DC components of voltage/current
■AC True RMS
■EF(Electric Field) Detection to indicate signal strength of electric field which surrounds
   current-carrying conductors
■Capture (peak hold) 1ms in duration
■MAX, MIN, AVG recording mode
■K type temperature -50℃〜1000℃
  ※Optional accessory K-AD is necessary.
  ※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Conductance measurement
■Dual display with backlight
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)

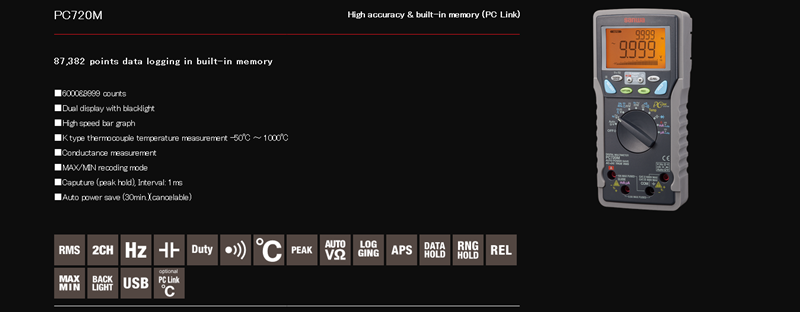

Digital Multimeters

Digital Multimeters/High accuracy & built-in memory (PC Link)

Safety
IEC61010-1:2001, IEC61010-31:2008 CAT.III 600V Max./CAT. II 1000V
Basic Features
■4 digits 9999 count & 3-5/6 digits 6000 count
■AC True RMS
■Dual display with backlight
■Automatic measurement for ACV/DCV/Ω under low impedance
■High speed bar graph
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current
■K type temperature -50℃〜1000℃
  ※Optional accessory K-AD is necessary.
  ※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle measurement
■Conductance measurement
■MAX, MIN, MAX-MIN recording mode
■Capture (peak hold) 1ms in duration
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)

Data Logging Mode
■87,328 data points in built-in memory (single display)
  43,664 data points in built-in memory (dual display)
■Selection of measurement interval
  0.05s/0.1s/0.5s/1s/2s/3s/4s/5s/10s/15s/30s/60s/120s/180s/300s/600s
■Auto-standby mode when a sampling speed of 30s or longer is selected
■Export logged data to PC
  ※Optional accessory KB-USB7 and PC Link7 are necessary.

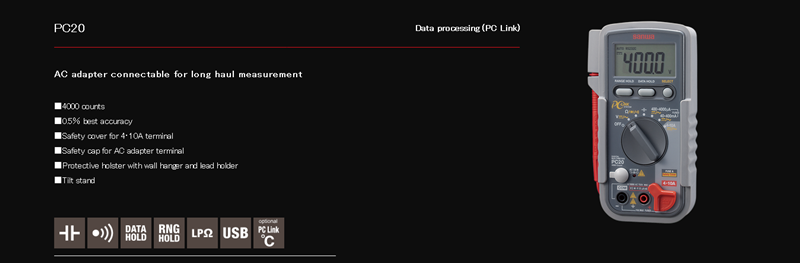

Digital Multimeters

Digital Multimeters/Data processing (PC Link)

Basic Features
■3-3 / 4 digits 4000 count
■0.5% best accuracy
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current.
■Data hold / Range hold
■Safety cover for the 4・10A terminal
■Safety cap for AC adapter terminal
■Protective holster with wall hanger and lead holder
■Tilt stand
■Optical link RS232C / USB interface (optional)

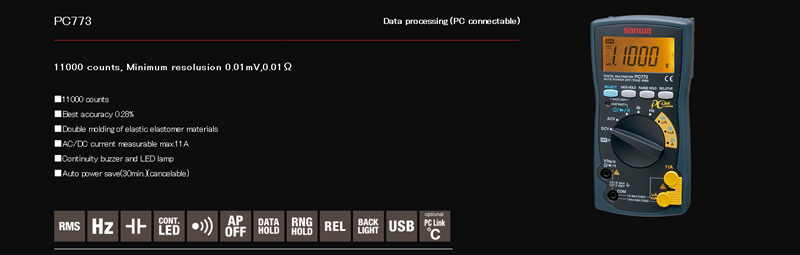

Digital Multimeters

Digital Multimeters/Data processing (PC Link)

Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III 600V Max. / CAT.II1000V Max.
Basic Features
■4-1/2 digits 11000 count
■0.28% best accuracy
■AC True RMS
■Thermo plastic elastomer, high resistance against drop shock
■Maximum DC/AC 11A can be measured
■Continuity buzzer and LED
■Data hold, Range hold, Relative function
■Auto power off function (30 min.)
■Optical link USB interface (optional)

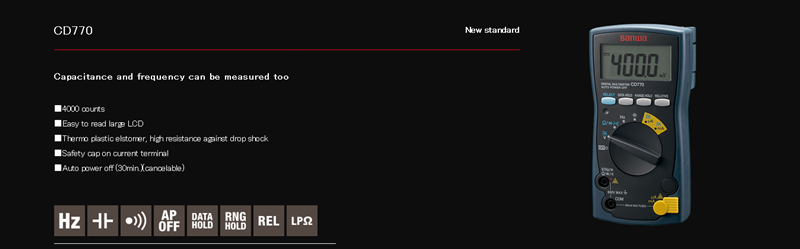

Digital Multimeters

Digital Multimeters/Standard type

Basic Features
■3-3/4 digits 4000 count
■Easy to read large LCD
■Thermo plastic elastomer, high resistance against drop shock
■Safety cap on current terminal
■Data hold, Range hold, Relative function
■Continuity check, Diode test
■Auto power off function (30min.)

Digital Multimeters

Digital Multimeters/Standard type

Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III 600V Max. / CAT.IIDC1000V
Basic Features
■3-3/4 digits 4000 count
■Easy to read large LCD with Backlight
■Large breaking capacity fuse 30kA
■1.5V battery check function
■Thermo plastic elastomer, high resistance against drop shock
■Safety cap on current terminal
■Data hold, Range hold, Relative function
■Continuity check, Diode test
■Auto power off function (30min.)
■Maximum 20A can be measured if the measurement time is less than 10 seconds.
  (Take 10 minutes or longer intervals between measurements)

Digital Multimeters

Digital Multimeters/Standard type

Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III 600V Max. / CAT.IIDC1000V
Basic Features
■3-3/4 digits 4000 count
■AC True RMS
■Easy to read large LCD with Backlight
■Large breaking capacity fuse 30kA
■K-type thermocouple temperature measurement -20℃〜300℃
■Thermo plastic elastomer, high resistance against drop shock
■Safety cap on current terminal
■Data hold, Range hold, Relative function
■Continuity check, Diode test
■Auto power off function (30min.)
■Maximum 20A can be measured if the measurement time is less than 10 seconds.
  (Take 10 minutes or longer intervals between measurements)

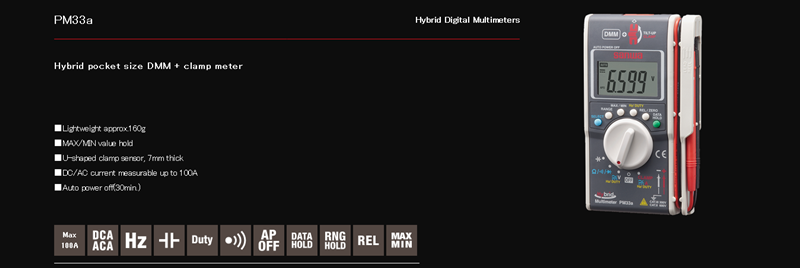

Digital Multimeters

Digital Multimeters/Hybrid Digital Multimeter

Safety
IEC61010-1 CAT.II 600V, CAT.III 300V
Basic Features
■Lightweight approx. 160g
■Maximum / Minimum value hold
■Current measurement with thin U-shaped current sensor(7mm) at angles
  of 0 and 180 degrees
■AC and DC currents measurable up to 100A
■Data hold
■Measurement of relative value
■Auto power off

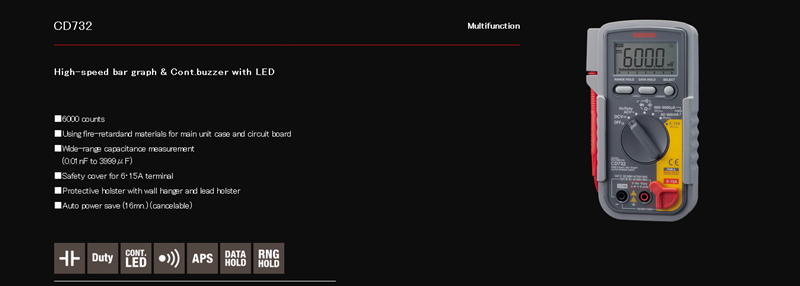

Digital Multimeters

Digital Multimeters/Multifunction

Safety
EN61010-1, EN61010-2-030, EN61010-2-033
CAT.III 600V / CAT.II DC1000V・AC750V
IEC61010-031
Basic Features
■6000 count
■Use of fire-retarding materials for holster and circuit board
■Wide-range capacitance measurement (0.01nF to 3999μF)
■Data hold / Range hold
■Safety cap on 6・15A terminal
■Protective holster with wall hanger and lead holder
■Auto Power Save (16min.) (cancelable)

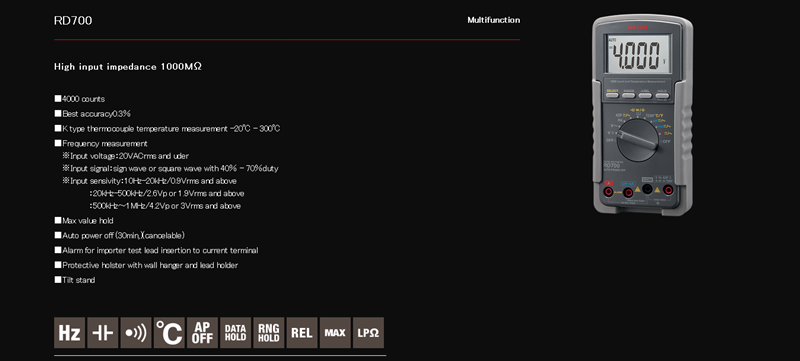

Digital Multimeters

Digital Multimeters/Multifunction

Basic Features
■3-3 / 4 digits 4000 count
■0.3% best accuracy
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current
■K type temperature
  ※Optional accessory K-AD is necessary.
  ※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement
  ※Input voltage : 20VACrms and under
  ※Input signal : sign wave or square wave with 40%-70% duty
  ※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
                             : 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
                             : 500kHz〜1MHz/4.2Vp or 3Vrms and above
■ADP function (for current sensor)
■Max recording measurement
■Data hold / Range hold
■Relative value
■Auto power off (30min.) (cancelable)
■Alarm for improper test lead insertion to current terminal
■Protective holster with wall hanger and lead holder
■Tilt stand

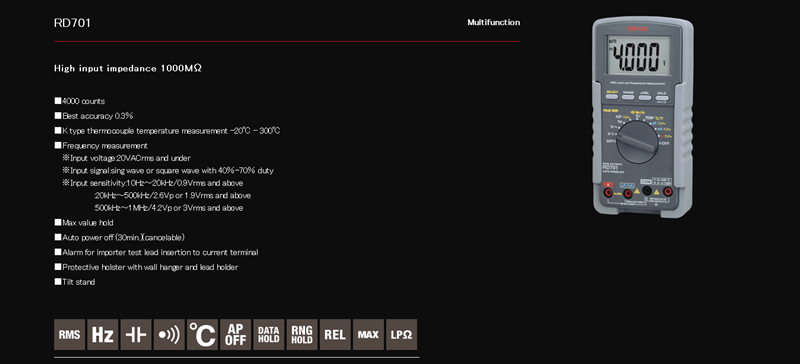

Digital Multimeters

Digital Multimeters/Multifunction

Basic Features
■3-3 / 4 digits 4000 count
■0.3% best accuracy
■AC True RMS
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current
■K type temperature
  ※Optional accessory K-AD is necessary.
  ※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement
  ※Input voltage : 20VACrms and under
  ※Input signal : sign wave or square wave with 40%-70% duty
  ※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
                             : 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
                             : 500kHz〜1MHz/4.2Vp or 3Vrms and above
■ADP function (for current sensor)
■Max recording measurement
■Data hold / Range hold
■Relative value
■Auto power off (30min.) (cancelable)
■Alarm for improper test lead insertion to current terminal
■Protective holster with wall hanger and lead holder
■Tilt stand

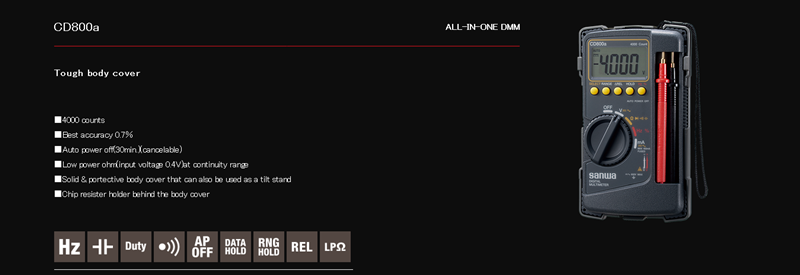

Digital Multimeters

Digital Multimeters/ALL-IN-ONE DMM

Basic Features
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current.
■Frequency measurement (AC sine wave only)
■Data hold / Range hold
■Relative value
■Auto power off (30min.) (cancelable)
■Low power ohm (input voltage 0.4V) at continuity range
■Solid & protective body cover that can also be used as a tilt stand
■Chip holder behind the body cover

Digital Multimeters

Digital Multimeters/ALL-IN-ONE DMM

Safety
IEC61010 CAT.IV 300V / CAT.III 600V
Basic Features
■6000 counts
■AC True RMS
■Data hold/Range hold
■Relative value measurement
■MAX/MIN value recording mode
■LCD with backlight
■Auto power save (15min.) (cancelable)
■Attachment body cover for protection

Digital Multimeters

Digital Multimeters/ALL-IN-ONE DMM

Safety
IEC61010 CAT.IV 1000V
Basic Features
■6000 counts
■AC True RMS
■Data hold/Range hold
■Relative value measurement
■MAX/MIN value recording mode
■LCD with backlight
■Auto power save (15min.) (cancelable)
■Attachment body cover for protection
■EF (Electric Field) detection

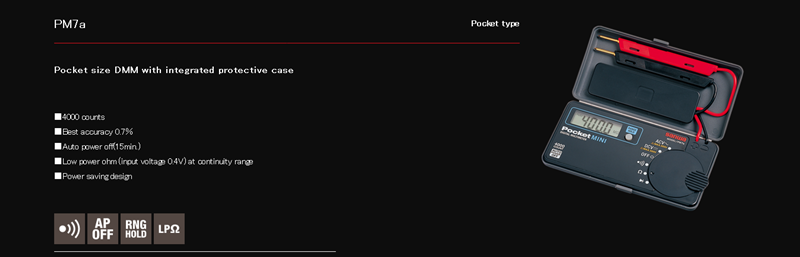

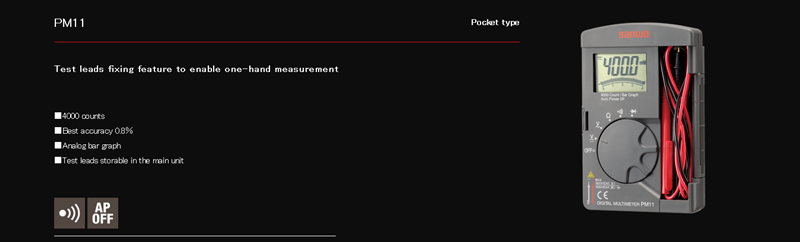

Digital Multimeters

Digital Multimeters/Pocket Type

Safety
IEC61010-1 CAT.III300V Max. / CAT.II500V Max.
Basic Features
■3-3 / 4 digits 4000 count
■0.8% best accuracy
■Analog bar graph
■Compact storage of test leads
■Test lead can be snapped into a fixed position  atop the case.
Display : numeral display 4000, bar graph 40 segments
Sampling rate : 1.3 times / sec., 13 times / sec. for bar graph
AC frequency bandwidth : 45〜1kHz

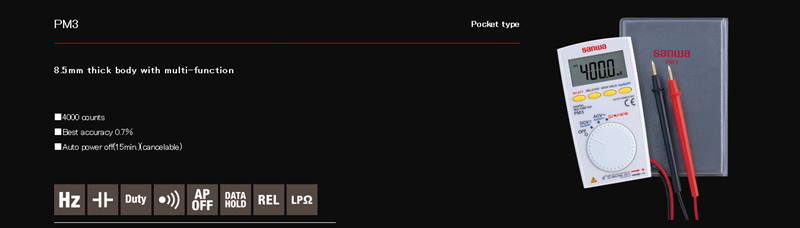

Digital Multimeters

Digital Multimeters/Pocket Type

Safety
IEC61010-1 CAT.II DC AC500V Max.
Basic Features
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Capacitance measurement
  ※Not suitable for measurement of condensers with large leak current.
■Frequency measurement (AC sine wave only)
■Duty cycle
■Data hold
■Relative value
■Auto power off (15min.) (cancelable)

Digital Multimeters

Digital Multimeters/Pocket Type

Safety
IEC61010 CAT.IV 300V / CAT.III 600V
Basic Features

C-300PC_closeopen■6000 counts ■AC True RMS ■Data hold
■Relative value measurement
■MAX/MIN value recording mode
■Auto power save (15min.) (cancelable)
■Stylish carrying case provided as standard accessory

Digital Multimeters

Digital Multimeters/Pocket Type

Basic Features
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Range hold
■Auto power off (15min.)
■Low power ohm (input voltage 0.4V) at continuity range
■Power saving design

Digital Multimeters

Digital Multimeters/Pocket Type

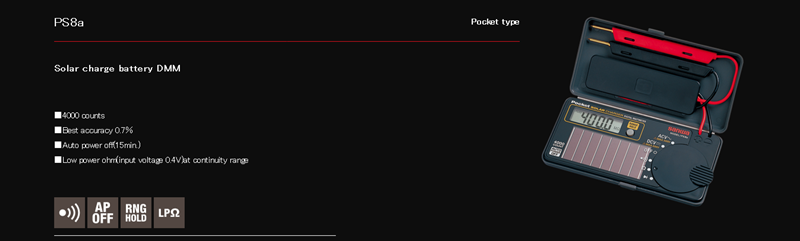

Basic Features
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Range hold
■Auto power off (15min.)
■Low power ohm (input voltage 0.4V) at continuity range
■Power saving design

Digital Multimeters

Digital Multimeters/MΩ tester

Basic Features
■Lightweight approx. 160g
■Easy to use, pocket size
■ACV / DCV measurement range
■DCA / ACA measurement range
■Inorganic EL backlight
■Test leads holder with thermo plastic elastomer which is easy to reel
■Current measurement with thin U-shaped current
■sensor (7mm) at angles of 0 and 180 degrees
■Data hold
■Measurement of relative value
■With Clip adapter

Digital Multimeters

Digital Multimeters/MΩ tester

Basic Features
■Lightweight approx. 160g
■Easy to use, pocket size
■ACV / DCV measurement range
■DCA / ACA measurement range
■Inorganic EL backlight
■Current measurement with thin U-shaped current
■sensor (7mm) at angles of 0 and 180 degrees
■Data hold
■Measurement of relative value
■With Clip adapter

Digital Multimeters

Digital Multimeters/MΩ tester

Basic Features
■Lightweight approx. 160g
■Easy to use, pocket size
■ACV / DCV measurement range
■DCA / ACA measurement range
■Inorganic EL backlight
■Current measurement with thin U-shaped current
■sensor (7mm) at angles of 0 and 180 degrees
■Data hold
■Measurement of relative value
■With Clip adapter

Digital Multimeters

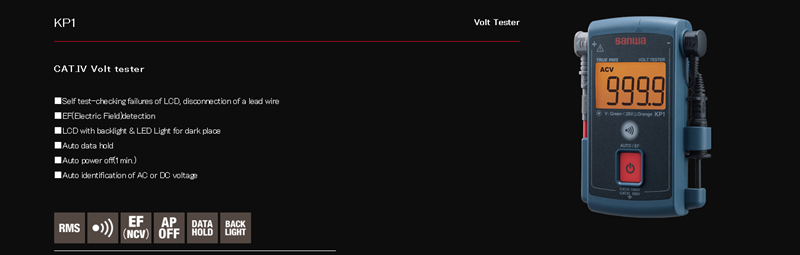

Digital Multimeters/Volt tester

Safety

IEC61010-1, IEC61010-2-030 CAT.IV600V/CAT.III1000V,
IEC61010-2-33, IEC61010-31

Basic Features
■AC True RMS
■Self test - checking failures of LCD, disconnection of a lead wire
■EF (Electric Field) detection
■LCD with backlight & LED light for dark place
■Auto data hold
■Auto power off (1min.)



Distributor/Agen Resmi Produk Kyoritsu, Sanwa, Teledyne LeCroy, Kikusui, ED, De Lorenzo di Indonesia. Menjual Alat Safety, Tools Electrical

We have 16 guests and no members online

Office

Main Office :

Ruko Concordia SRB26 Kota Wisata, Bogor 16968 Indonesia

Phone :

(021)29478974, (021)2299 7129

Mobile/WA:

0811 1388 063

Branch Office :

Gedung Graha Pena Jawa Pos Lantai 18 R.1807, Jl. Ahmad Yani No.88, Surabaya 60234 Indonesia

Phone :

(031)33600536

Store

Adiluc Store :

Plaza Kenari Mas , Lt. LG Blok B121 , Jalan Kramat Raya No. 101 , Paseban , Senen , Jakarta Pusat 10440

Phone :

(021)23951202

Toko Best :

LTC Glodok Lt. 2 Blok C3 No. 3-5 , Jl. Hayam Wuruk No.127, Mangga Besar, Tamansari, Kota, Jakarta Barat 11180

Phone :

(021)22685705

Available at
