Sanwa Indonesia - Sanwa Clamp Meters

Sanwa CAM600S, DCL1000, DCM400, DCM-22AD, DCM400AD, DCL11R, DCL1200R, DCL3000R, DCM60R, DCM660R, DCL31DR, DCM2000DR, DCM600DR, DLC460F

Clamp Meters

Clamp Meters／AC

Basic Features
■AC current measurable max. 600A
■Long analog pointer with "pointer lock" function
■Temperature measurement with optional probe
Display : Analog pointer
AC frequency bandwidth : 50 / 60Hz

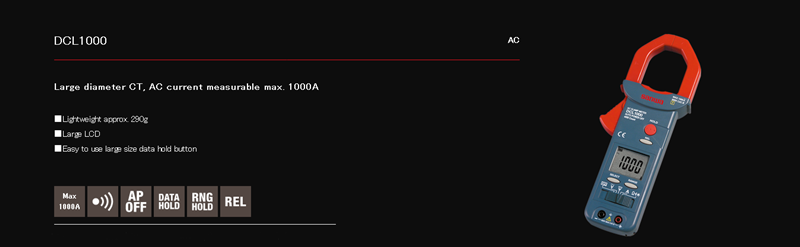

Clamp Meters

Clamp Meters／AC

Safety
IEC61010-2-032 (2002), CAT.III600V
Basic Features
■Lightweight approx. 290g
■Large LCD
■Easy to use large size data hold button
Sampling rate : 3 times / sec.
AC frequency bandwidth : 50〜500Hz

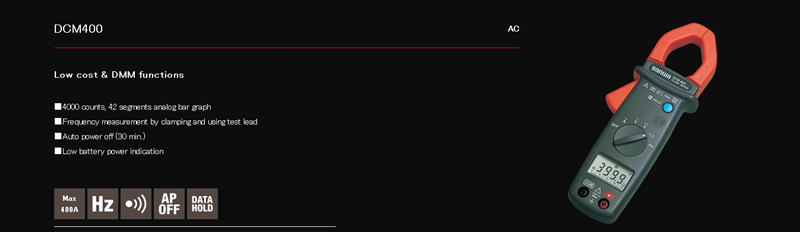

Clamp Meters

Clamp Meters／AC

Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III300V. / CAT.II 600V
Basic Features
■4000 count / 42 segment analog bar graph
■Frequency measurement by clamping and using 　test lead
■Data hold
■Continuity check buzzer
■Auto power off (30min.)
■Low battery power indication
Sampling rate : 2 times / sec. for numeral display
AC frequency
bandwidth : 50〜60Hz (ACA : 1.9%±5), 60〜500Hz (ACA :
2.5%±5), 50〜500Hz (ACV)


Clamp Meters

Clamp Meters／DC/AC

Basic Features
■DC / AC current measurable max. 200A
■Continuity check buzzer
■Data hold
■Slim core for narrow space
Display : numeral display 1999
Sampling rate : 2 times / sec. for numeral display
AC frequency bandwidth : 40〜400Hz (ACA), 40〜500Hz (ACV)

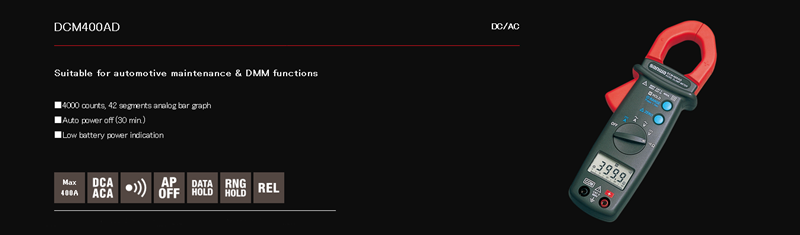

Clamp Meters

Clamp Meters／DC/AC

Safety
IEC61010-1 (EN61010-1) 2001-02 CAT.III 300V / CAT.II600V
Basic Features
■4000 count / 42 segment analog bar graph
■DC / AC current 40A/400A
■Data hold / Range hold
■Relative value
■Continuity check buzzer
■Auto power off (30min.)
■Low battery power indication
Display : numeral display 3999, bar graph 42 segments
Sampling rate : 2 times / sec. 20 times / sec. for bar graph
AC frequency bandwidth : 50〜500Hz

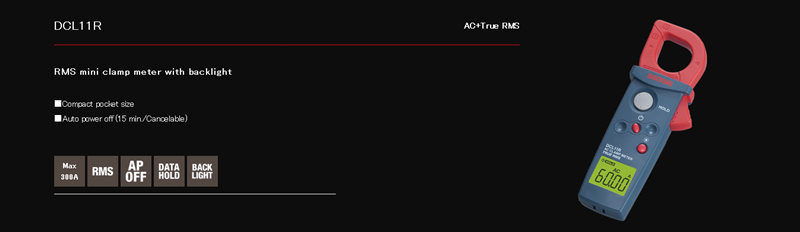

Clamp Meters

Clamp Meters／AC+True RMS

Safety

IEC61010-1, IEC61010-2-030 CAT.III300V
IEC61010-2-32

Basic Features
■True RMS
■Compact pocket size
■Data hold
■Backlight
■Auto power off (approx.15min.) (cancelable)
Sampling rate : approx.2 times / sec.

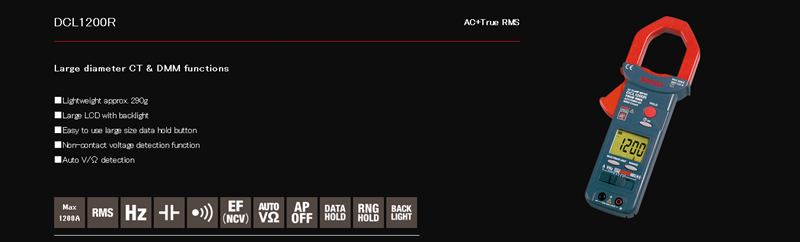

Clamp Meters

Clamp Meters／AC+True RMS

Safety
IEC61010-2-032 (2002) CAT.III600V Max.
Basic Features
■Lightweight approx. 290g
■True RMS
■Large LCD with Backlight
■Easy to use large size data hold button
■AC voltage detection function (EF)
■Auto V / Ω detection
■MAX. 1200A measurable
Display : numeral display 6000
Sampling rate : 5 times / sec.
AC frequency bandwidth : 50 / 60Hz

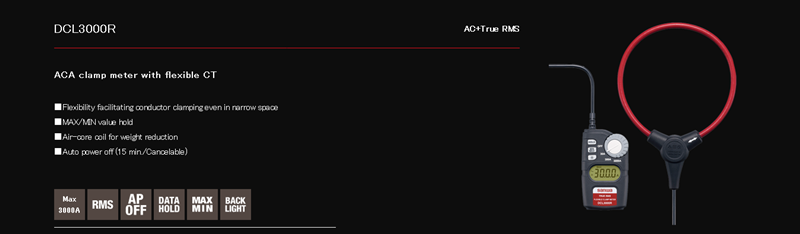

Clamp Meters

Clamp Meters／AC+True RMS

Safety
Safety : IEC61010 CAT.IV 600V
Basic Features
■ Flexibility facilitating conductor clamping even in narrow space
■ AC current measurable max. 3000A
■ True RMS
■ Data hold, Max/Min value hold
■ Backlight
Sampling rate : approx. 2 times / sec.

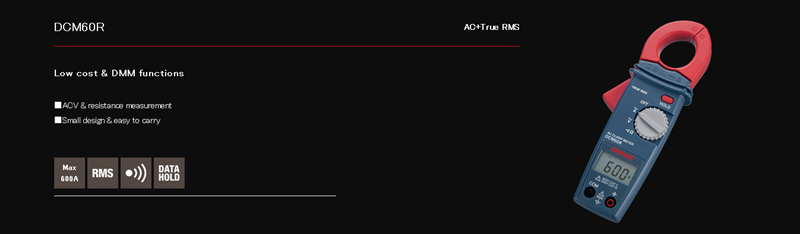

Clamp Meters

Clamp Meters／AC+True RMS

Safety

IEC61010-1, IEC61010-2-030, CAT.III300V/CAT.II600V
IEC61010-2-032, IEC61010-2-033, IEC61010-31

Basic Features

■True RMS
■Measurable AC 0.1A～600A
■ACV & Resistance measurement
■Small Design & easy to carry
■Data hold
■Continuity check buzzer
Sampling rate : approx.2 times / sec.
AC frequency bandwidth : 50～400Hz

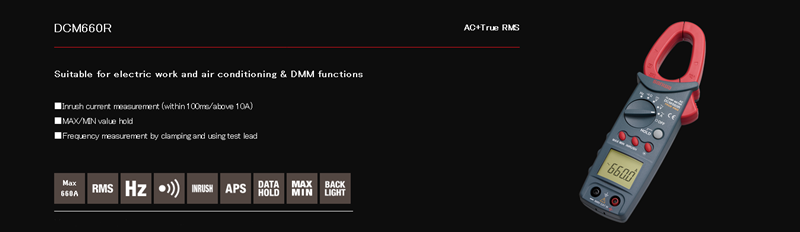

Clamp Meters

Clamp Meters／AC+True RMS

Safety
IEC61010-1 CAT.III600V, IEC61010-2-032, IEC61010-031
Basic Features
■AC current measurable max. 660A
■True RMS
■Inrush current measurement
■Max/Min value hold
■Frequency measurement by clamping and using 　test lead
■Data hold, Auto power save
■LCD with back light
Sampling rate : 3 times / sec. for numeral display

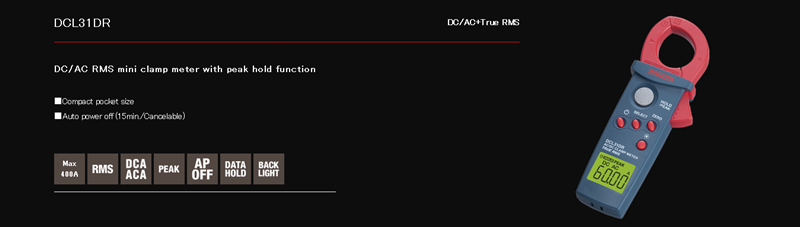

Clamp Meters

Clamp Meters／DC/AC+True RMS

Safety
IEC61010-1, IEC61010-2-030 CAT.III300V
IEC61010-2-32
Basic Features
■True RMS
■Compact pocket size
■Peak hold
■Data hold
■Backlight
■Auto power off (approx.15min.)(cancelable)

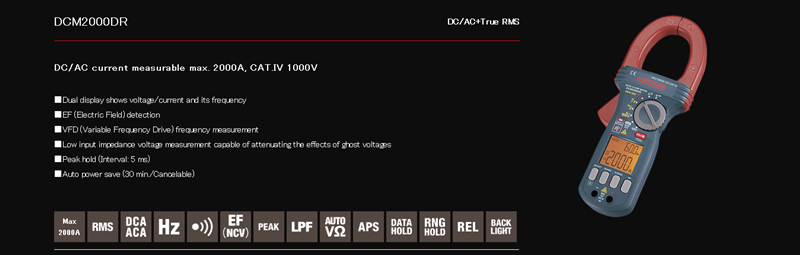

Clamp Meters

Clamp Meters／DC/AC+True RMS

Safety
IEC61010 CAT.IV 1000V
Basic Features
■Dual display shows voltage/current and its frequency
■True RMS
■EF (Electric Field) sensing
■VFD (Variable Frequency Drive) frequency measurement
■Low input impedance voltage measurement capable of
  attenuating the effects of ghost voltage
■Data hold, Range hold
■Relative value
■Peak hold (5msec.)
■Auto Power Save (30min.) (cancelable)
Sampling rate : approx. 5 times / sec

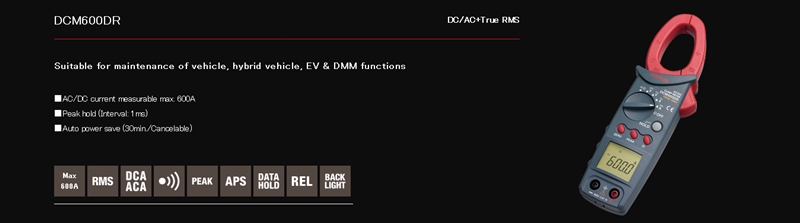

Clamp Meters

Clamp Meters／DC/AC+True RMS

Safety
IEC61010-1 CAT.III600V, IEC61010-2-032, IEC61010-031
Basic Features
■AC / DC current measurable max. 600A
■True RMS
■Peak hold
※When the peak button is pressed, the measuring range will be fixed to the 600A range.
■Relative value measurement
■Data hold, Auto power save
■LCD with back light
Sampling rate : 3 times / sec. for numeral disply,

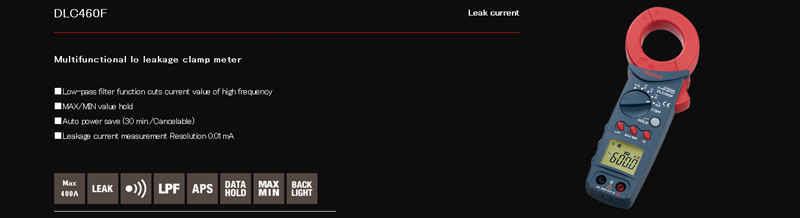

Clamp Meters

Clamp Meters／Leak current

Safety
IEC61010-1 CAT.III600V, IEC61010-2-032, IEC61010-031
Basic Features
■Low-pass filter function cuts current value of high frequency
■Max/Min value hold, Data hold
■Backlight
■Auto power save (30min.)
■Sampling rate : 2 timese/sec
