Fameca HTAG High Voltage Detector (50 -765 kV)

Designed to check the absence of nominal voltage in a circuit of high voltage and very high voltage systems from 50 kV to 765 kV (voltage range according to IEC recommendation).

The HTAG detects any nominal voltage on overhead lines or substations.

The HTAG addresses all the needs and comment collected from users and experts in recent years.

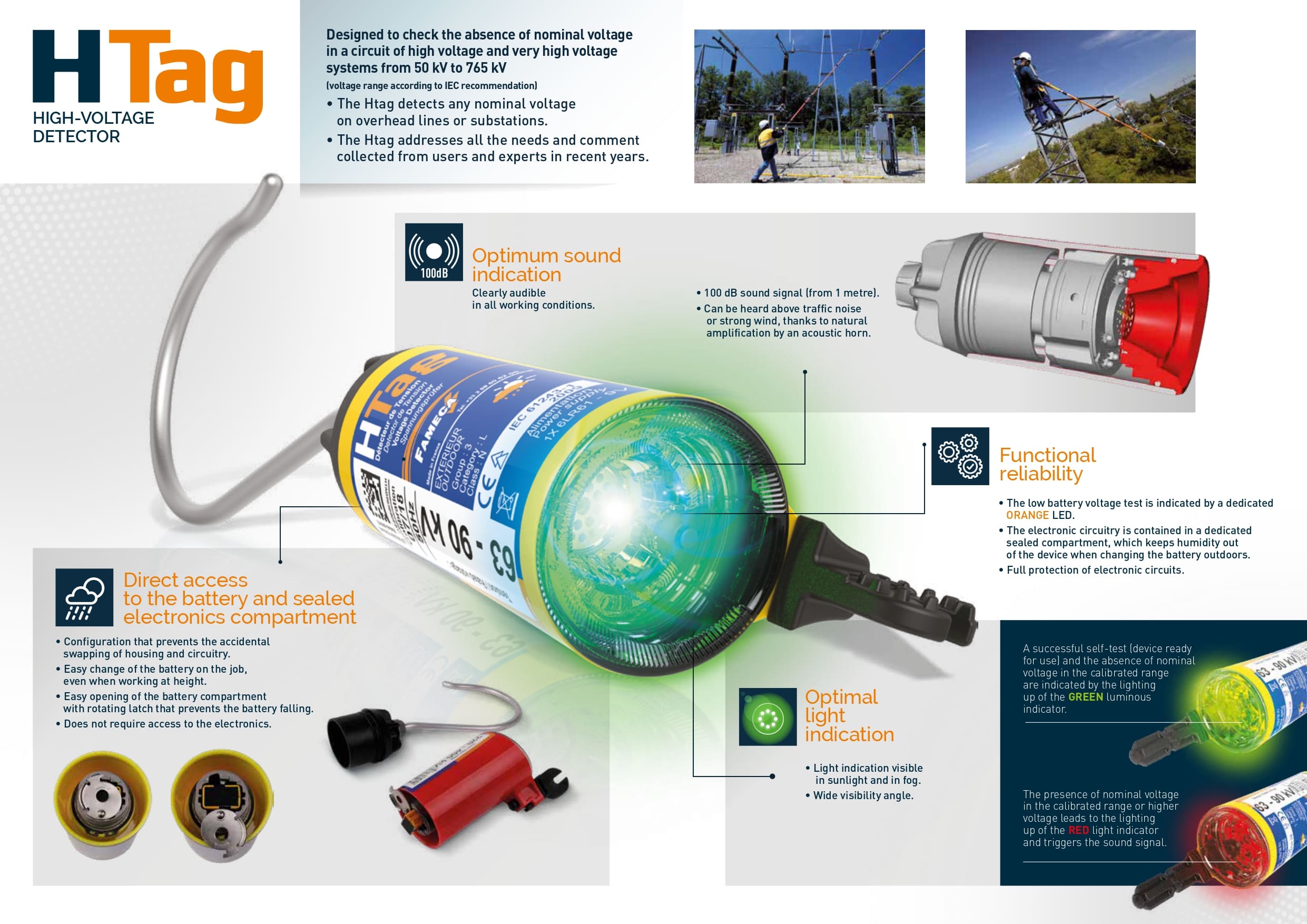

HTAG - Optimum Sound Indication

• Clearly audible in all working conditions
• 100 dB sound signal (from 1 metre)
• Can be heard above traffic noise or strong wind, thanks to natural amplification by an acoustic horn



HTAG - Built for Your Environment

Direct Access to the Battery and a Sealed Electronics Compartment

• Configuration that prevents the accidental swapping of housing and circuitry
• Easy change of the battery on the job, even when working at height
• Easy opening of the battery compartment with rotating latch that prevents the battery falling
• Does not require access to the electronics

Optimal light indication

• Light indication visible in sunlight and in fog
• Wide visibility angle



HTAG Other Key Features:

• AC voltage range possible choice from 50 to 765 kV Network frequency: 50 or 60 Hz (to be specified with the order)
• Permanent standby status with automatic wake-up function
• The presence of voltage within the calibrated range or above makes a RED indicator light up, and an audio signal is generated
• Self-test OK: the OK status (ready for use) of the device is indicated by a GREEN indicator lamp
• The self-test checks all the circuits, the reference detection level and the cell voltage
• The self-test is repeated automatically throughout the ready for use state as indicated by the green indicator lamp (for 1.5 minutes)
• The battery low level is indicated by a dedicated ORANGE LED indicator going on
• Designed for outdoor use
• Operating temperature: -25 °C to +55 °C
• Humidity: 96 % max
• Power supply voltage: 9 V alkaline cell – IEC 6LR61
• Accepts the use of accumulators with identical supply voltage
• Yellow or red polycarbonate housing
• Dimensions: Ø 80 mm, L = 225 mm without the electrode
• Net weight: 0.618 kg with stick end fitting, without electrode
• Operating manual with a choice of languages, depending on the package
• Package with three electrodes : 2 hooks: Ø 60 mm (AC 60) and Ø 120 mm (AC 120) and 1 straight electrode (D 100)



Absence of Nominal Voltage

The HTAG has a successful self-test (device ready for use) and the absence of nominal voltage in the calibrated range is indicated by the lighting up of the GREEN luminous indicator.



Presence of Nominal Voltage

The presence of nominal voltage in the calibrated range or higher voltage leads to the lighting up of the RED light indicator and triggers the sound signal.

Optimised indication that can be understood clearly in all working conditions:

• The indicator light is visible in all usual working environments, in sunlight or fog, with a wide visibility angle
• The 100 dB sound signal (from 1 metre) remains audible even over the noise of traffic or strong wind, thanks to natural conduction by an acoustic “horn”



What comes with the FAMECA HTAG?

• (HTAG132400FCPB) HTAG High Voltage Detector
• Metal Case



Fameca HTAG Specification:

Fameca HTAG132400FCPB:

• Voltage range: 132 - 400 kV
• Frequency: 50/60 Hz
• Housing colour: Red
• End fitting: Universal
• Contact electrode: AC60/AC120 and V200
