Kyoritsu Indonesia - Kyoritsu Multi Function Testers

Kyoritsu KEW 6010B, MODEL 6011A, KEW 6016, MODEL 6018, KEW 6024PV

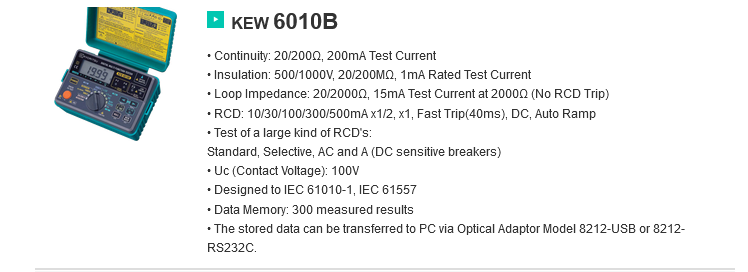

KEW 6010B

KEW 6010B

• Continuity: 20/200Ω, 200mA Test Current
• Insulation: 500/1000V, 20/200MΩ, 1mA Rated Test Current
• Loop Impedance: 20/2000Ω, 15mA Test Current at 2000Ω (No RCD Trip)
• RCD: 10/30/100/300/500mA x1/2, x1, Fast Trip(40ms), DC, Auto Ramp
• Test of a large kind of RCD's: Standard, Selective, AC and A (DC sensitive breakers)
• Uc (Contact Voltage): 100V
• Designed to IEC 61010-1, IEC 61557
• Data Memory: 300 measured results
• The stored data can be transferred to PC via Optical Adaptor Model 8212-USB or 8212-RS232C.

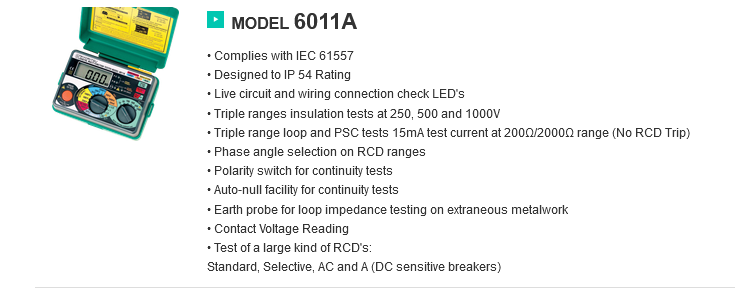

MODEL 6011A

MODEL 6011A

• Complies with IEC 61557
• Designed to IP 54 Rating
• Live circuit and wiring connection check LED's
• Triple ranges insulation tests at 250, 500 and 1000V
• Triple range loop and PSC tests 15mA test current at 200Ω/2000Ω range (No RCD Trip)
• Phase angle selection on RCD ranges
• Polarity switch for continuity tests
• Auto-null facility for continuity tests
• Earth probe for loop impedance testing on extraneous metalwork
• Contact Voltage Reading
• Test of a large kind of RCD's:
Standard, Selective, AC and A (DC sensitive breakers)

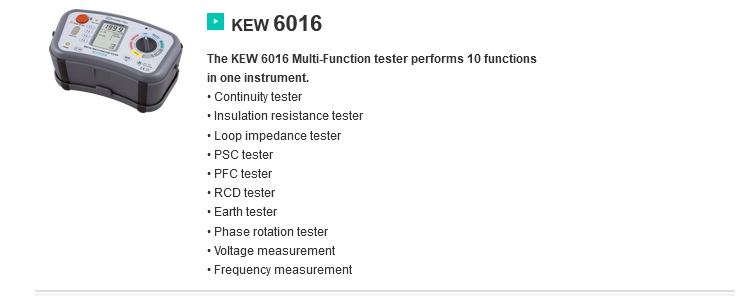

KEW 6016

KEW 6016

The KEW 6016 Multi-Function tester performs 10 functions
in one instrument.

• Continuity tester
• Insulation resistance tester
• Loop impedance tester
• PSC tester
• PFC tester
• RCD tester
• Earth tester
• Phase rotation tester
• Voltage measurement
• Frequency measurement

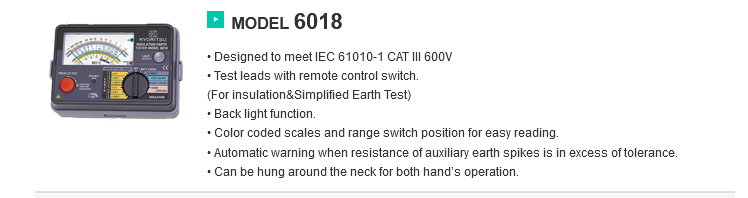

MODEL 6018

MODEL 6018

• Designed to meet IEC 61010-1 CAT III 600V
• Test leads with remote control switch.
(For insulation&Simplified Earth Test)
• Back light function.
• Color coded scales and range switch position for easy reading.
• Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
• Can be hung around the neck for both hand’s operation.

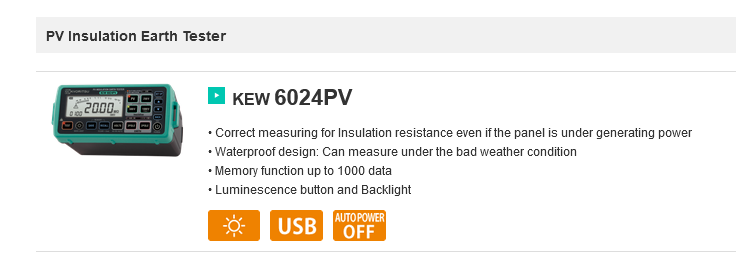

PV Insulation Earth Tester

KEW 6024PV


KEW 6024PVNEW

• Correct measuring for Insulation resistance even if the panel is under generating power
• Waterproof design: Can measure under the bad weather condition
• Memory function up to 1000 data
• Luminescence button and Backlight

Backlight USB AutoPowerOff
