Kyoritsu Indonesia - Kyoritsu Insulation Testers

Kyoritsu KEW 3431, MODEL 3161A, MODEL 3165, MODEL3166, MODEL 3131A, MODEL 3132A, KEW 3021, KEW 3022, KEW 3023, MODEL 3005A, MODEL 3007A, KEW 3128, KEW 3127, KEW 3025A, KEW 3121B, KEW 3122B, KEW 3123A, MODEL 3124, KEW 3125A

Analogue Insulation Testers

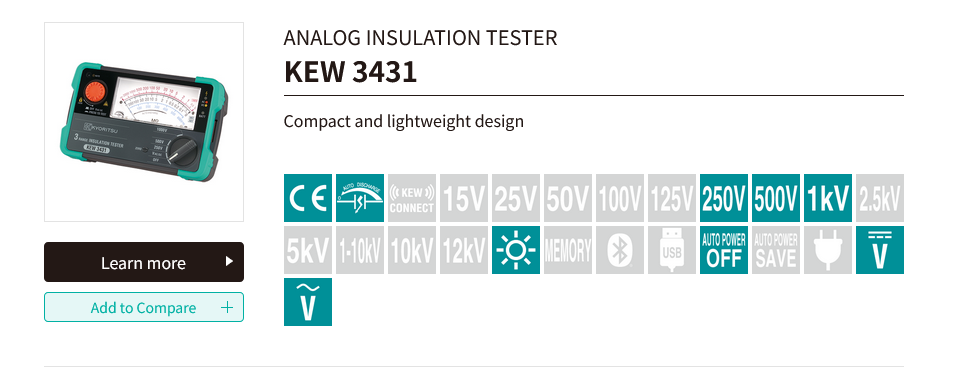

KEW 3431

KEW 3431NEW

• Extremely compact and lightweight design.
• Automatic sensor turns the illuminated scale and LED spot light ON/OFF, useful in dimly lit location.
• Standard accessories include test probe with remote control switch and protective carry case.
• Live circuit warning with buzzer and flashing LED.

DCACV Backlight

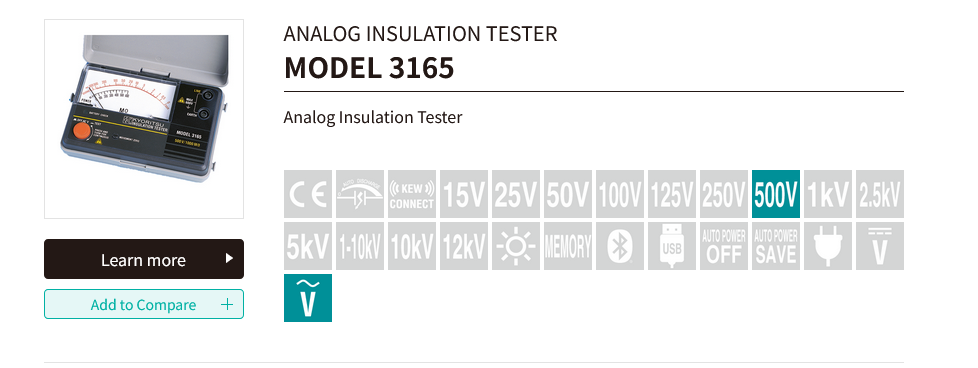

MODEL 3165

MODEL 3165

• 500V/1000MΩ(Model 3165)
• Expanded megohm scale for easy reading.
• New robust housing case to prevent damage.
• AC voltmeter scale for easy reading.
• Neck strap for both hand’s operation.

ACV 500V

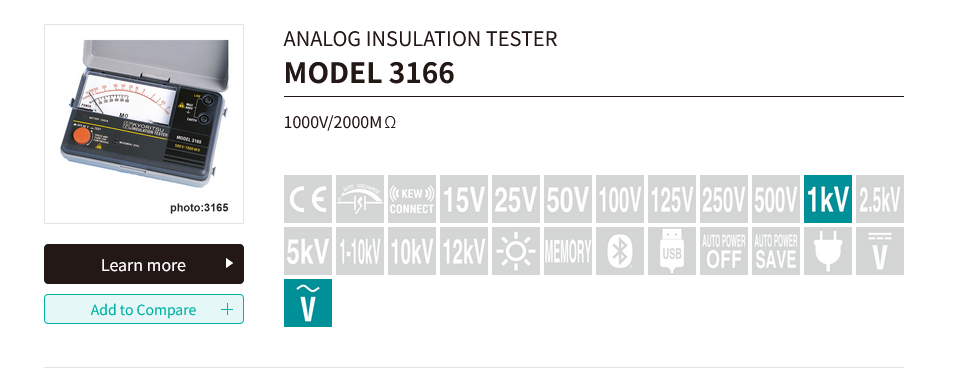

MODEL 3166

MODEL 3166

• 1000V/2000MΩ
• Expanded megohm scale for easy reading.
• New robust housing case to prevent damage.
• AC voltmeter scale for easy reading.
• Neck strap for both hand’s operation.

ACV 1000V

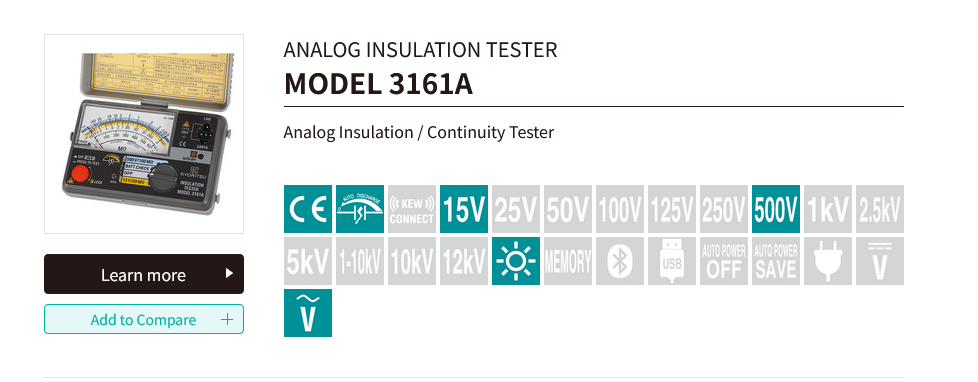

MODEL 3161A

MODEL 3161A

• Miniature lightweight insulation tester. It weighs only 340g(battery included),
but carries full measurement functions.
• Automatic discharge of circuit capacitance.
• Test leads with remote control switch.
• New robust housing case.
• Back light function.
• Neck strap for both hands operation.

ACV Backlight 15V 500V

Analogue Insulation / Continuity Testers

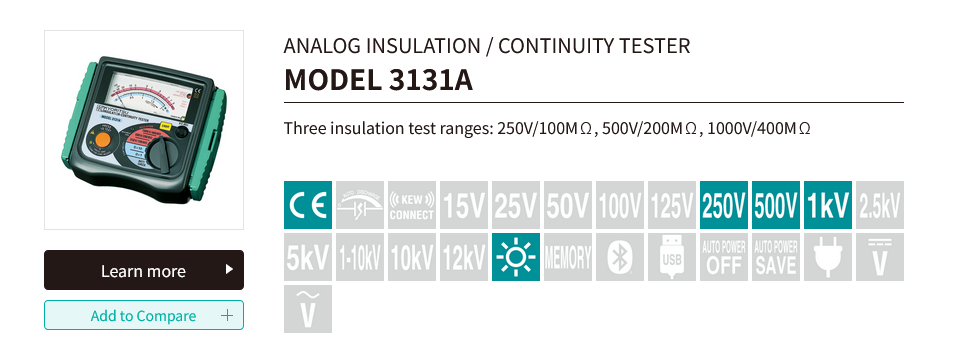

MODEL 3131A

MODEL 3131A

• Test insulation up to 100MΩ at 250V, 200MΩ at 500V, 400MΩ at 1000V and continuity up to 20Ω.
• LIVE circuit warning lamp plus audible warning.
• Automatic discharge of circuit capacitance when TEST button is released.
• Fuse protected (continuity range only).
• Battery check LED.
• Front panel zero adjust.
• Back light function to facilitate working at dimly lit situations.
• PRESS TO TEST button with lock down feature.

Resistance Backlight 250V 500V 1000V

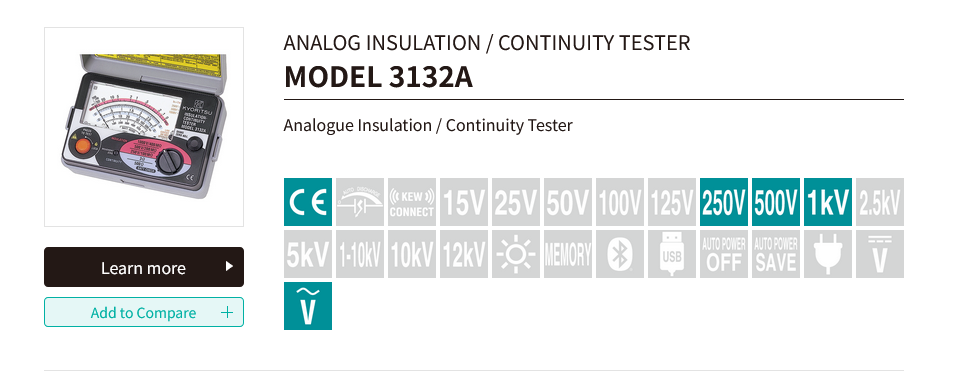

MODEL 3132A

MODEL 3132A

•Dust and drip proof construction. (designed to IEC 60529 IP54)
•Designed to meet IEC 61010-1 and IEC 61557 safety standard.
•1mA rated test current at the minimum resistance.
•200mA measuring current on continuity testing.
•Automatic discharge of circuit capacitance.
(Any charge stored in the circuit under test will be automatically discharged after testing.)
•Live circuit warning buzzer and neon lamp.
•Small and lightweight. Shock resistant new case material.
•AC voltmeter with linear, easy-to-read scale.
•Operates on AA, R6 × 6 dry batteries.

ACV Resistance 250V 500V 1000V

Digital Insulation / Continuity Testers

KEW 3021

KEW 3021

• 3 functions in one unit, insulation test with 4 voltage ranges,
 continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0Ω adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation
 on 500 and 1000 Volt ranges
• Safety standard IEC 61010-01 CAT III 600V

125V 250V 500V 1000V DCACV Resistance Continuitybuzzer Backlight
AutoPowerOff



KEW 3023

KEW 3023

• 3 functions in one unit, insulation test with 4 voltage ranges, continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0Ω adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
• Safety standard IEC 61010-01 CAT III 600V (Photo: 3021)

100V 250V 500V 1000V DCACV Resistance Continuitybuzzer Backlight
AutoPowerOff

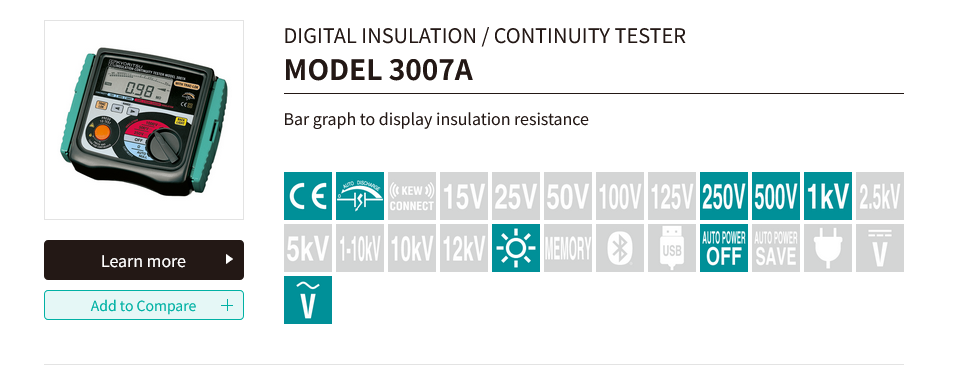

MODEL 3007A


MODEL 3007A

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Trac-Lok mode to conserve battery life on insulation and continuity tests.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• Backlight function to view the test results in dimly lit areas.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

ACV Resistance Continuitybuzzer Backlight AutoPowerOff 250V 500V 1000V

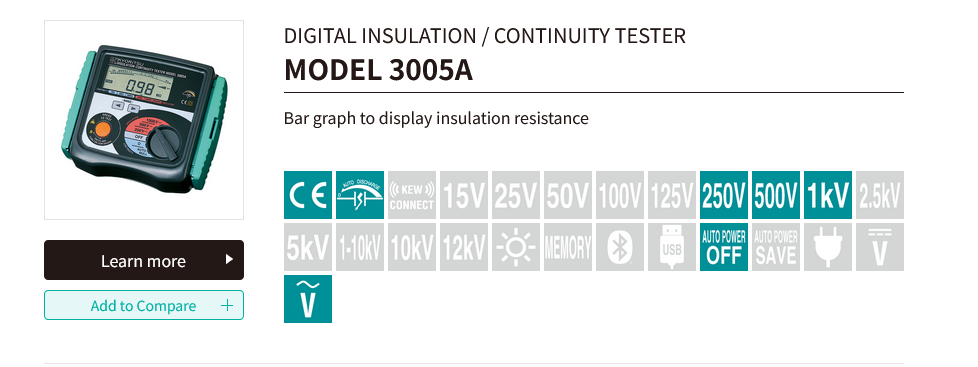

MODEL 3005A

MODEL 3005A

• Bargraph to display insulation resistance.
• Displays the value of external AC voltage along with flashing symbol.
• Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value.
• Live circuit warning beeper.
• Releasing the test button automatically discharges the charges stored in the circuit under test.
• 200mA continuity measuring current to IEC 61557.
• Minimum 1mA current on insulation tests to IEC 61557.

ACV Resistance Continuitybuzzer AutoPowerOff 250V 500V 1000V

KEW 3022

KEW 3022

• 3 functions in one unit, insulation test with 4 voltage ranges, continuity test, AC voltage measurement
• 200mA measuring current on continuity testing
• Comparator function with PASS / FAIL and buzzer
• 0Ω adjustment at continuity measuring range
• Memory function up to 99 data
• Backlight LCD provides easy reading in dark locations
• Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
• Safety standard IEC 61010-01 CAT III 600V (Photo: 3021)

50V 100V 250V 500V DCACV Resistance Continuitybuzzer Backlight
AutoPowerOff

High Voltage Insulation Testers

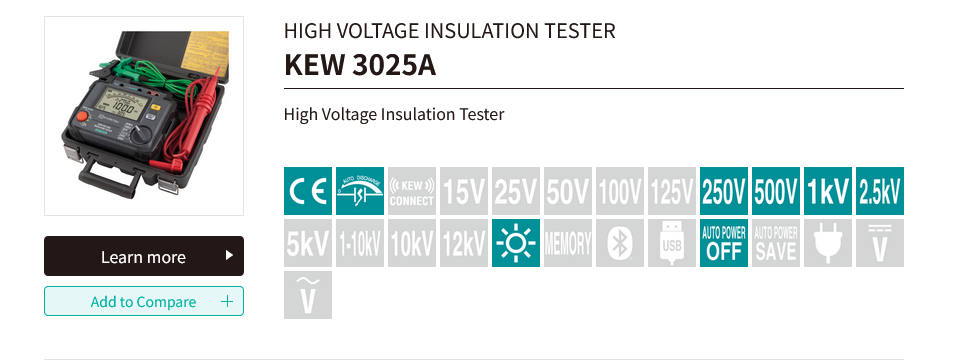

KEW 3025A

KEW 3025A

• Short-Circuit Current up to 1.5mA
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V (Photo: 3125A)

DCACV Backlight AutoPowerOff 250V 500V 1000V 2500V

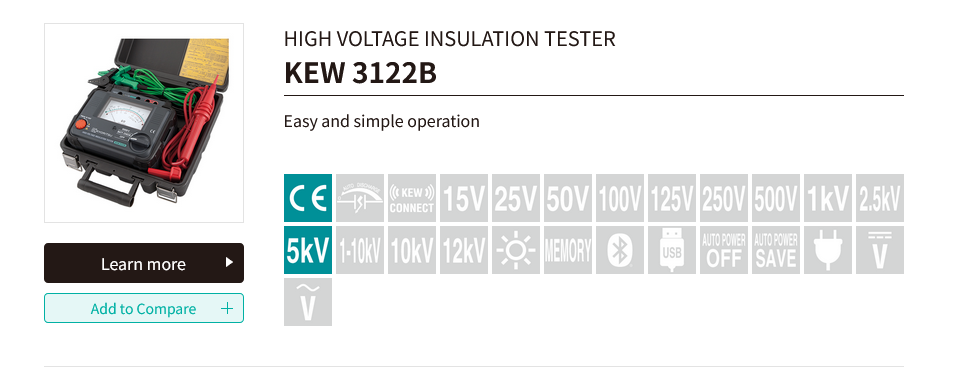

KEW 3122B

KEW 3122B

• Extremely easy and simple operation
• Automatic ranges, indicated by individual LED's
• Newly-designed alligator clip
• It comes with a tough hard case
• Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V

5000V

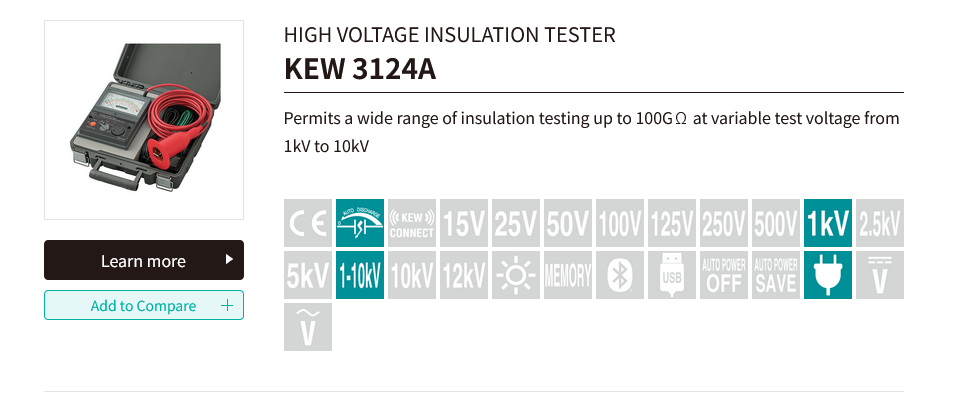

MODEL 3124

MODEL 3124

• Permits a wide range of insulation testing up to 100GΩ at variable test voltage from 1kV to 10kV.
• DC voltage output for recorders.
• Output voltage is shown on the digital display.
• After tests, automatically discharges the charges stored in the circuit under test.
• Operated by rechargeable Nickel-Cadmium batteries.

1KV~10KV External

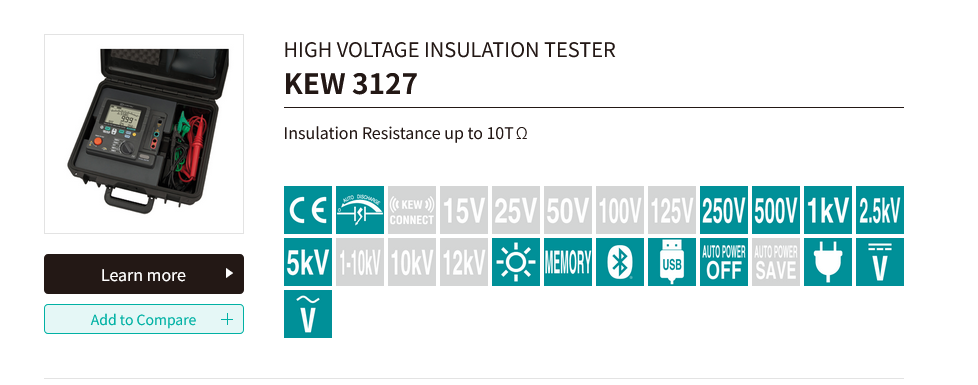

KEW 3127

KEW 3127

Test Voltage up to 5kV, Resistance up to 10TΩ,
Short-Circuit Current up to 5mA.
Wireless communication by Bluetooth for transferring

CAT4 600V DCACV Backlight USB AutoPowerOff Bluetooth 250V 500V
1000V 2500V 5000V

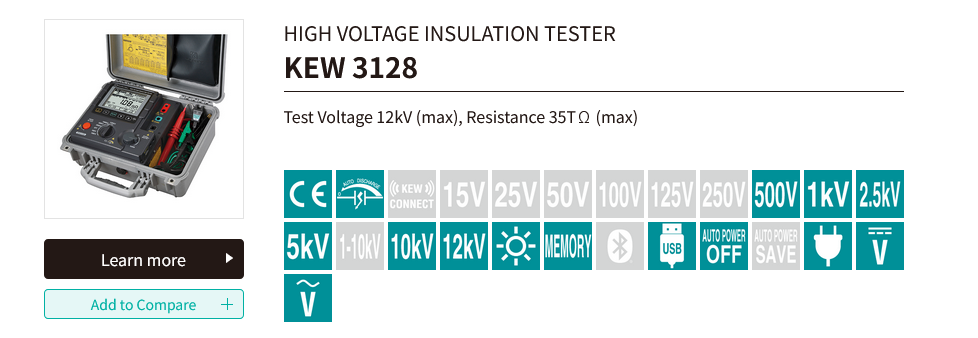

KEW 3128

KEW 3128

Test Voltage up to 12kV, Resistance up to 35TΩ,
Short-Circuit Current up to 5mA.
Graphic representation on large backlight display

CAT4 600V DCACV Backlight USB AutoPowerOff 500V 1000V 2500V
5000V 1KV~10KV 12KV External

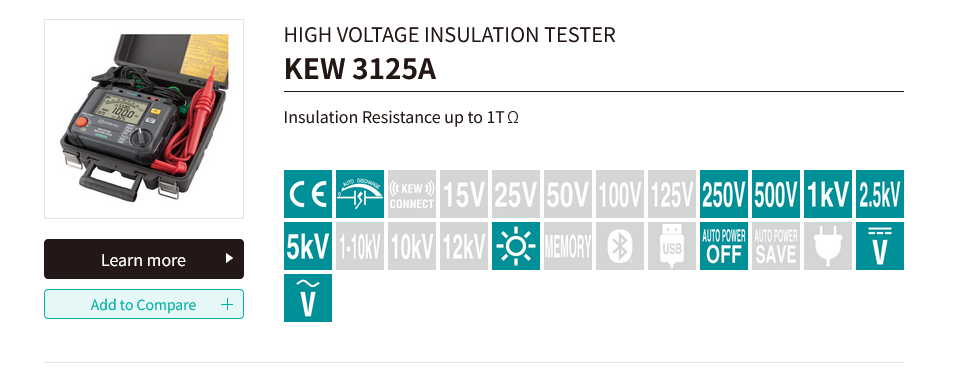

KEW 3125A

KEW 3125A

• Insulation Resistance up to 1TΩ
• Short-Circuit Current up to 1.5mA
• Wide Test Voltage from 250V to 5000V
• Diagnosis Function of PI and DAR
• Newly-designed alligator clip
• It comes with a tough hard case
• Filter function reduces noise interference for obtaining stable measurement
• Large display with Bar Graph indication and backlight
• Live voltage warning
• Safety standard IEC 61010-1 CAT IV 300V / CAT III 600V

DCACV Backlight AutoPowerOff 250V 500V 1000V 2500V 5000V

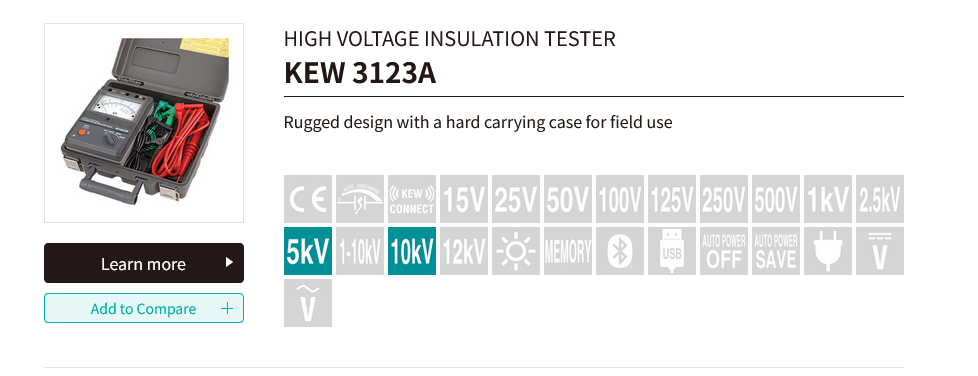

KEW 3123A

KEW 3123A

• Rugged design with a hard carrying case for field use
• Detachable High Voltage Line probe
• Automatic ranges, high and low scales, indicated by different LED's
• Drip proof

5000V 10KV

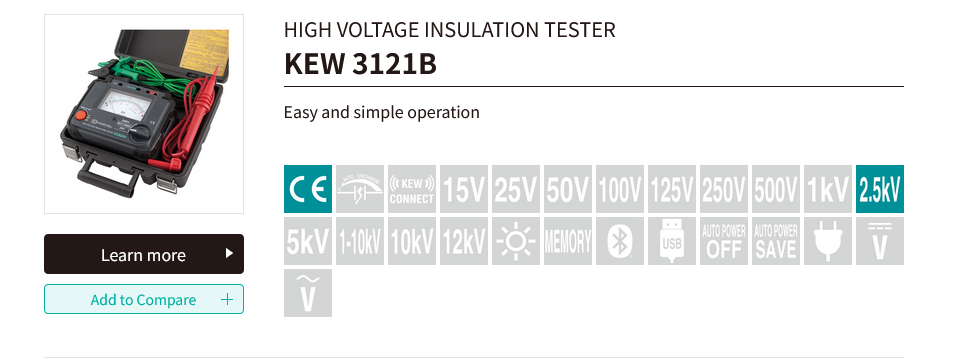

KEW 3121B

KEW 3121B

• Extremely easy and simple operation
• Automatic ranges, indicated by individual LED's
• Newly-designed alligator clip
• It comes with a tough hard case
• Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V

2500V
