Tektronix DC Power Supply

Find the Right DC Power Supply for Your Application

General-Purpose Power Supplies

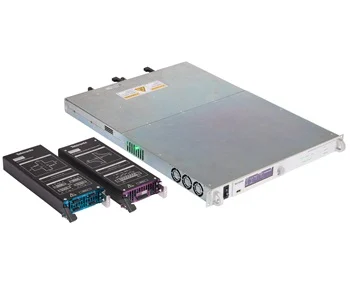

MP5000 Modular Precision Test Systems

1U mainframe with 3 slots
Up to 6 channels per 1U mainframe
Mix & match PSU & SMU

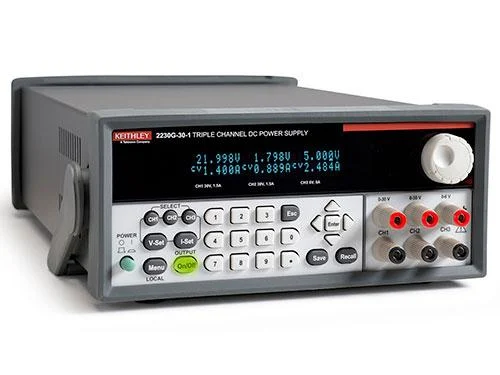

Series 2220/2230/2231 Multi-Channel Programmable DC Power Supplies

Two or three independent outputs
All outputs displayed simultaneously
Remote sensing on all channels
Low noise
Programmable power supply
Applications include teaching labs, testing circuit board testing and modules

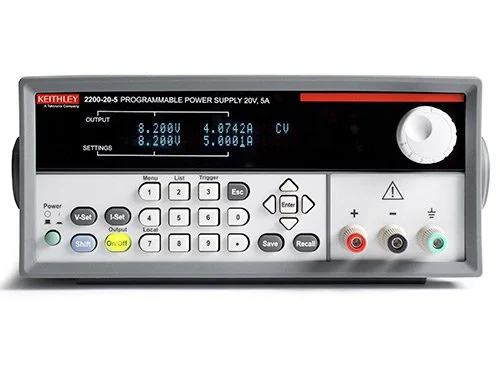

Series 2200 USB/GPIB DC Power Supplies

20V to 72V and 1.2A to 5A outputs
1mV/0.1mA resolution
Displays settings and outputs

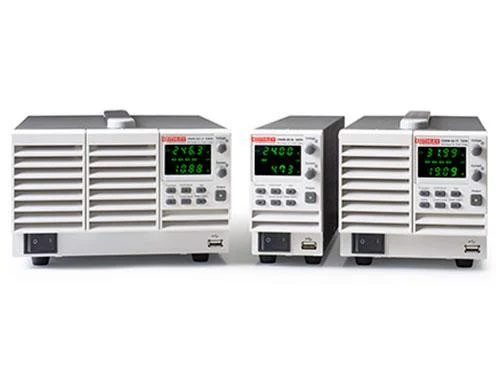

Series 2260B 360W/720W/1080 Programmable DC Power Supplies

Power up to 1080W
Outputs up to 800V and 100A
Analog input
Single channel
Wide range
Programmable power supply
Used in automated test equipment
Used in a wide range of applications, including research and design, quality control, and ATE

Battery Testing & Simulation

EA-BT Battery Tester

Optimized for battery testing and battery simulation
1 ms communication speed
Models available with 3 independent channels to test more batteries at a time

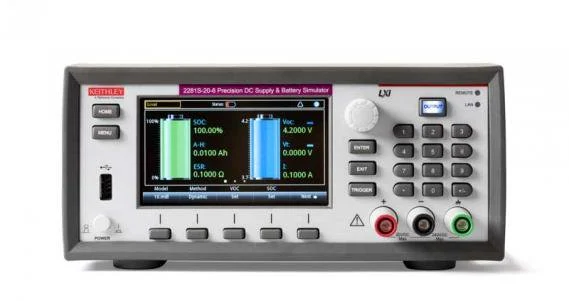

Keithley Series 2281S Battery Simulator/Emulator

Used to model and simulate any type of battery
Unique display shows battery state
Precision power supply mode
TFT LCD display to monitor current and voltages
Applications include estimating battery life, quick repeatable testing for any state of discharge, etc.

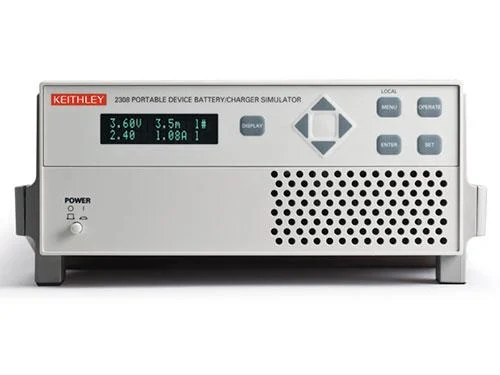

Keithley Series 2300 Battery Simulating DC Power Supplies

Ultra-fast response to transient load currents
Single and dual output models
Each output can source or sink
Programmable output resistance
Open sense lead detection
Built-in digital voltmeter
Low noise

EA-BIM 20000 Series Battery Impedance Meters

Broad frequency EIS delivers deeper insight into battery cells condition.
Better than 1% impedance measurement accuracy
20 channels of 4-wire PT100 temperature sensors
Measurements hundreds of times faster than traditional swept measurements

High-Precision Applications

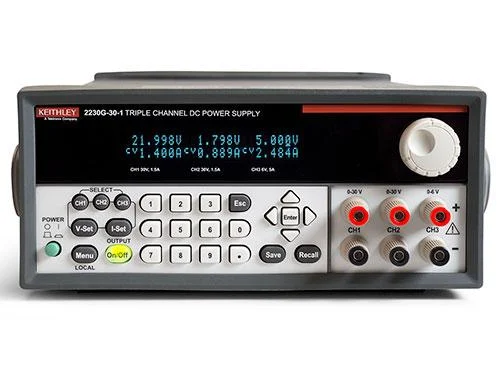

Series 2230 High Power 3 Output DC Power Supplies

195 W and 375 W versions
6 A or 60 V per output
Remote sensing on all outputs
Three-channel models
Low noise
Programmable power supply
Applications include advanced teaching labs, R&D Labs, and ATE Systems

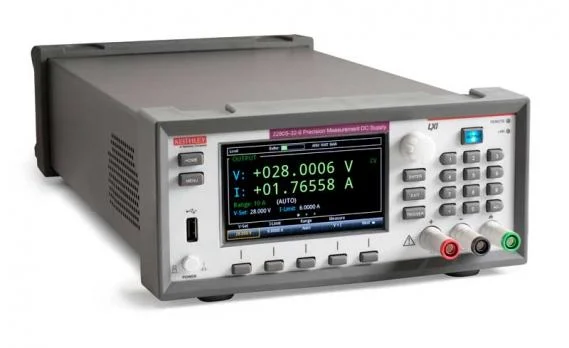

Keithley Series 2280S High Precision, Low Noise Bench Power Supply

192W with up to 6A
6 ½-digit, 10nA current measurement resolution
Displays plots of voltage and current
Programmable power supply
Designed for benchtop and automated testing of power conversion devices and IoT devices
TFT LCD display to monitor current and voltages
Applications include advanced R&D Labs, IOT device testing, and ATE Systems

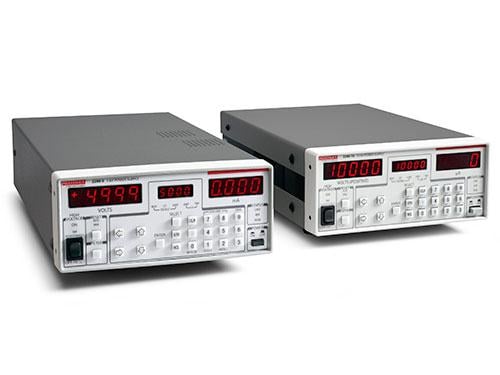

Keithley 2290 High Voltage Power Supplies

5kV and 10KV output models
1µA current resolution
Safety interlock
IEEE-488 programmable
Low noise output
Applications include breakdown voltage and leakage, ATE, and bench testing

High-Power Applications

EA-PS/PSI Programmable Power Supplies

High power density, efficient unidirectional supplies with autoranging
Active power factor correction minimizes waste drawn from the power grid
Built in function generator

EA Autoranging Bench Power Supplies

Precision benchtop power supplies with touch screen
Autoranging for wider voltage and current test envelope.

EA-PSB Bidirectional Power Supplies

High-voltage supplies with built-in load to source and sink power at 96% efficiency
True autoranging that delivers maximum power down to about 1/3 of the rated voltage or current
The PSB 20000 series includes three fast, precise outputs

EA High Power DC Racks

Scalable High-Power Performance in a Compact Footprint
Comprehensive Integration and Control
Robust Safety and Customization Options

EA-PUB/PUL/PU Industrial Power Units

High Power Density with Modular Scalability
Bidirectional Efficiency and Regenerative Capability
Unified Platform for Seamless Integration
