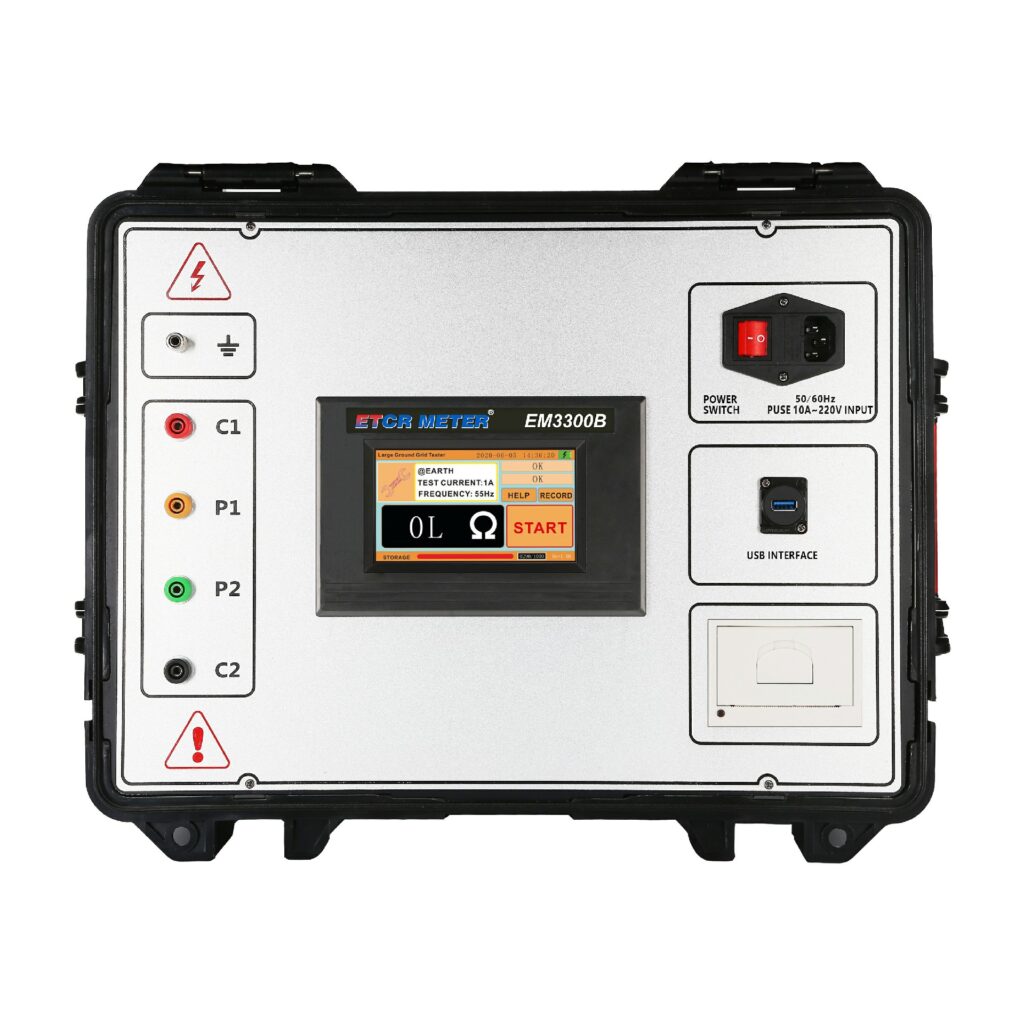

EM3300B Large Grounding Network Earth Resistance Tester

EM3300B Large Grounding Network Earth Resistance Tester Product Series : Large Grounding Grid Earth Tester Main FeaturesMeasuring earth resistance, earth continuity, soil resistivity, step voltage, contact voltage and earth surface electric potential gradient of the large grounding network device. Grounding Impedance Measurement Range: 0.000Ω ~ 2000Ω Soil Resistivity Measurement Range: 0Ωm ~ 125kΩm Output Current Level: 1A ~ 5A Max. Voltage Output: 400V Data Storage: 1000 Groups Alarm Function: Custom setting alarm threshold USB Communication Bluetooth Communication

EM3300B  Large Grounding Network Earth Resistance Tester is also known as earth grid grounding impedance tester, variable frequency earth resistance tester, earth grid tester, which is used for substation ground network, power plant, microwave station, communication base station and other large ground network grounding parameter measurement. The tester is powerful,which can measure earth resistance, earth continuity, soil resistivity, step voltage, contact voltage and earth surface electric potential gradient of the large grounding network device.
EM3300B Large Grounding Network Earth Resistance Tester is manufactured according to the JJG984-2004 Grounding Conduction Verification regulation, DL/T475-2006 Grounding Device Characteristic Parameters Measurement Guidelines, DL/T845.2-2004 Resistance measuring Device General Technical Conditions Part ll: Power Frequency Earth Resistance Tester. The instrument has unique grounding pile, cable diagnostic function and self-checking function to ensure the accuracy of test result. And the tester also adopt with strong automatic frequency conversion anti-interference technology, with 400V/5A high-power output can accurately measure the power frequency data of below 50Hz under strong interference environment.
EM3300B Large Grounding Network Earth Resistance Tester has storage, time function, which can automatically record 1000 groups test result containing date and time. Through USB interface can upload the test data to the PC, making the historical data can be read, checked, saved and printed, etc.
ETCRMETER is a high-end brand of ETCR. All products are manufactured by ETCR, which also provides technical support and after-sales service.

Product Features
1.Comprehensive measure the power frequency characteristic parameter of large grounding grid.
2.Output current 1A ~ 5A, voltage 400V. Adopt automatic frequency conversion and hardware and software filtering technology, which makes the instrument with stong anti-interference, ensuring the data stable and reliable.
3.With test function of current pile and voltage pile, which is used to diagnose the fault of poor connection of line contact , voltage pile and current pile.
4.Self-checking Function: Equipped with 0.5Ω standard resistance for self-checking at any time to ensure the accuracy of the test result.
5.Alarm Function: Custom setting alarm threshold
6.Data Storage: 1000 Groups
7.USB Communication: Data upload function
8.Bluetooth Communication
9.Built-in Printer

Technical Parameters
